Mira-Titan Universe II: \(P_\mathrm{cb}\)

• CosmicEmu version 3 & Mira-Titan Universe II

Links

• Code: CosmicEmu GitHub

• Papers: arXiv:1508.02654, arXiv:1705.03388

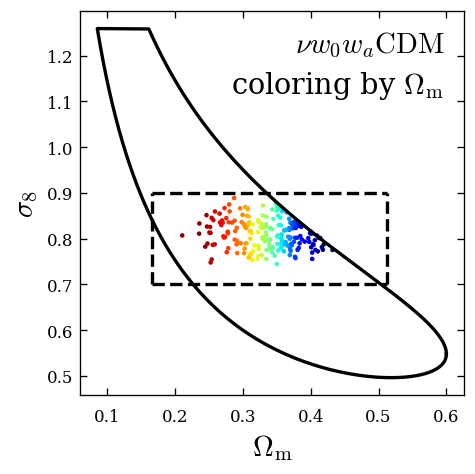

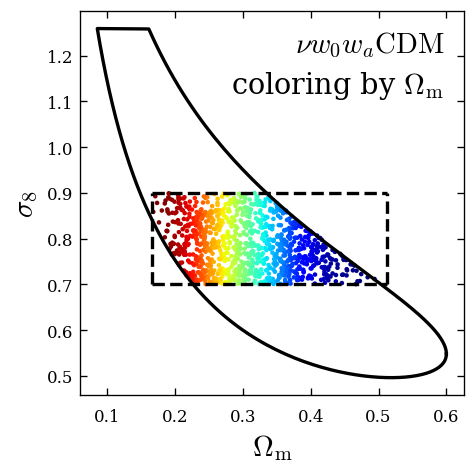

• Supports \(\nu w_0 w_a \mathrm{CDM}\) cosmologies.

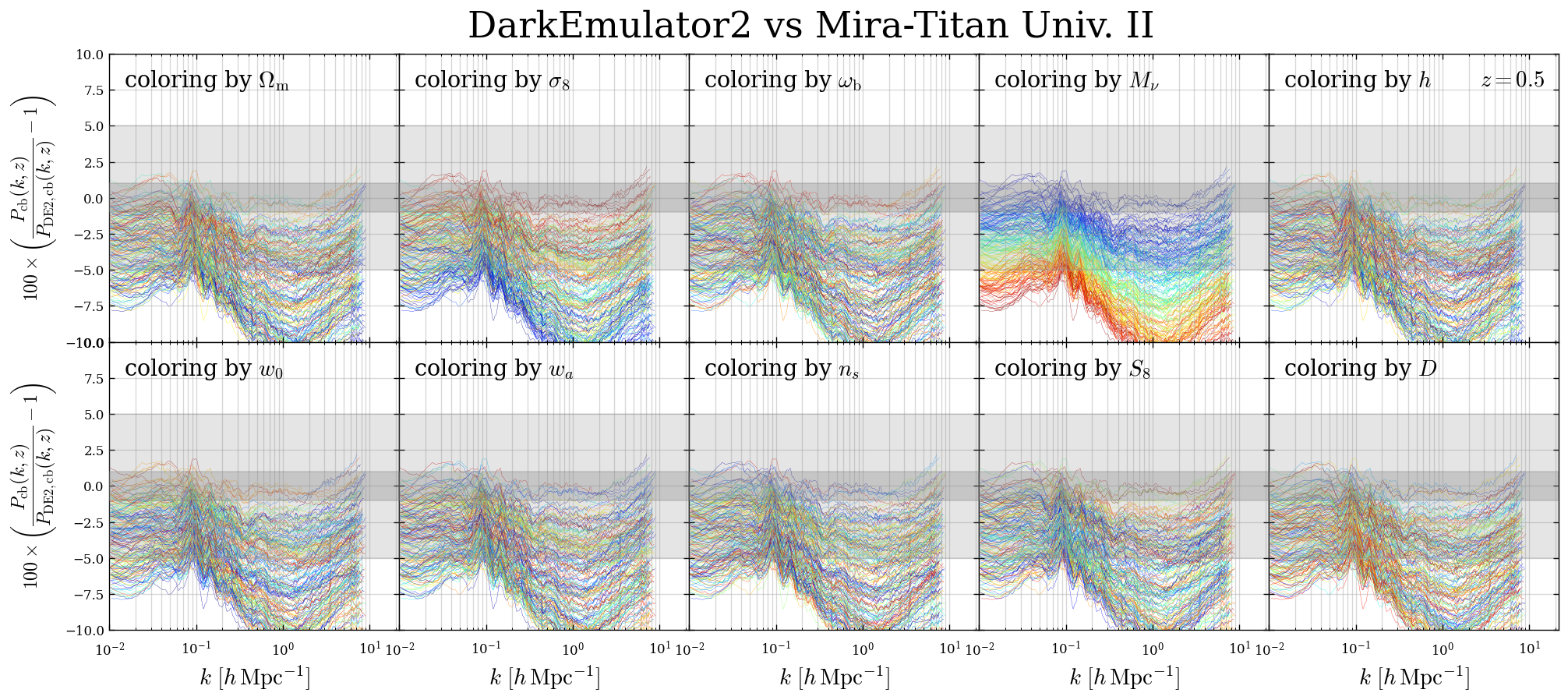

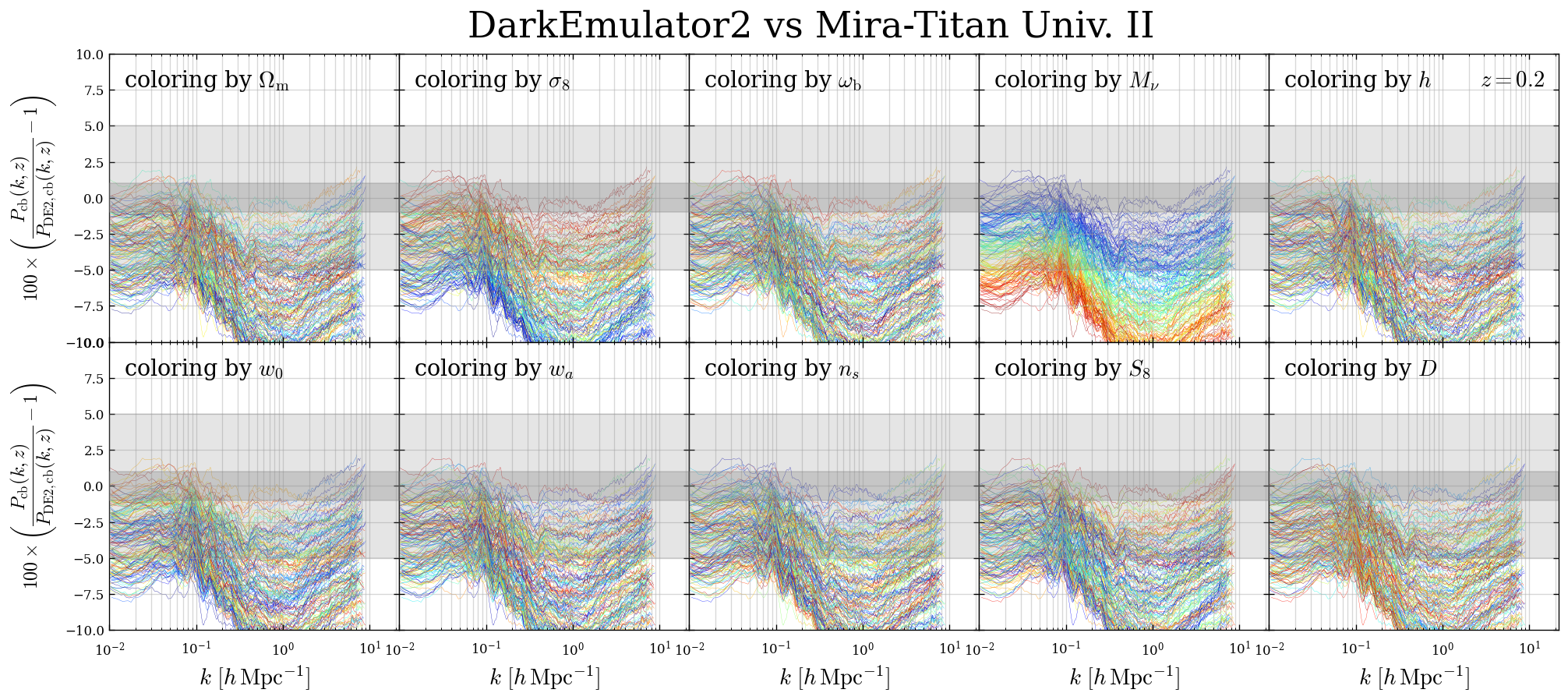

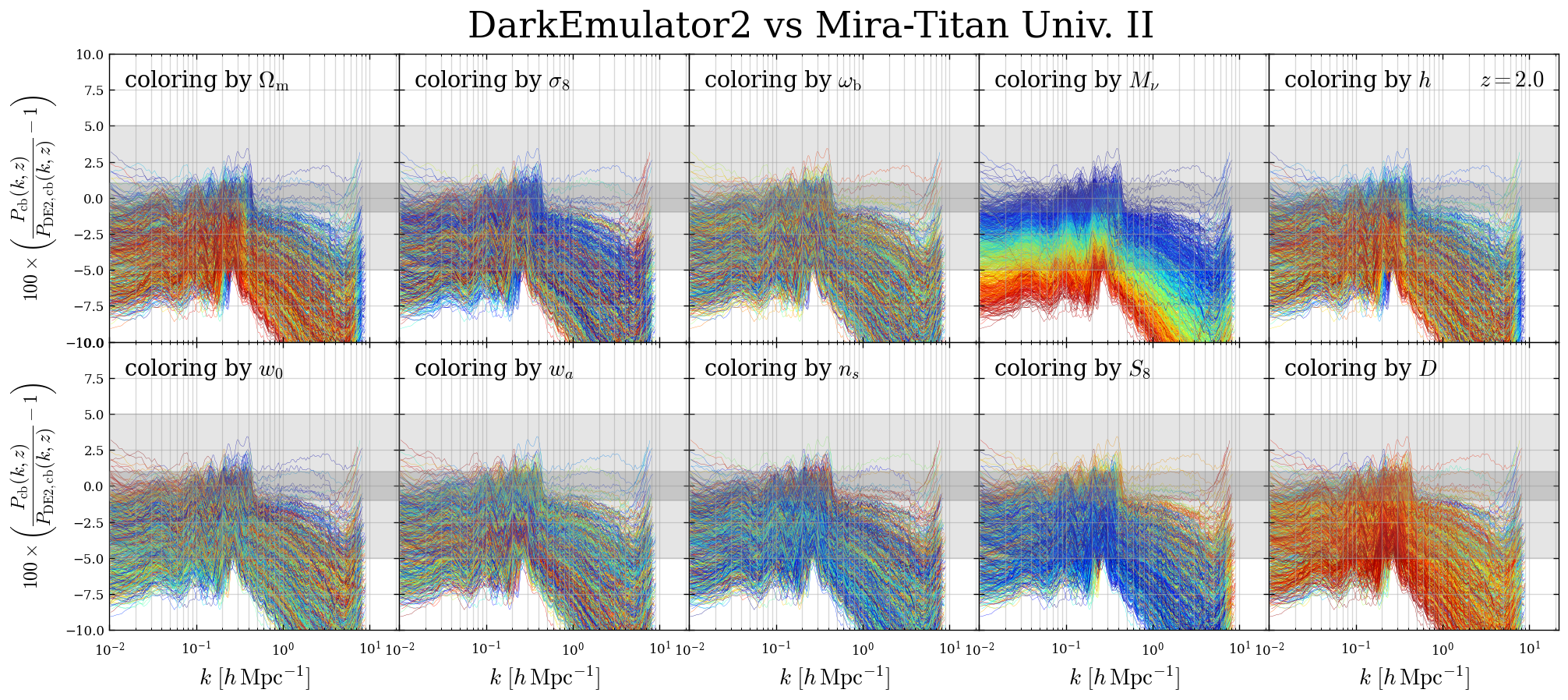

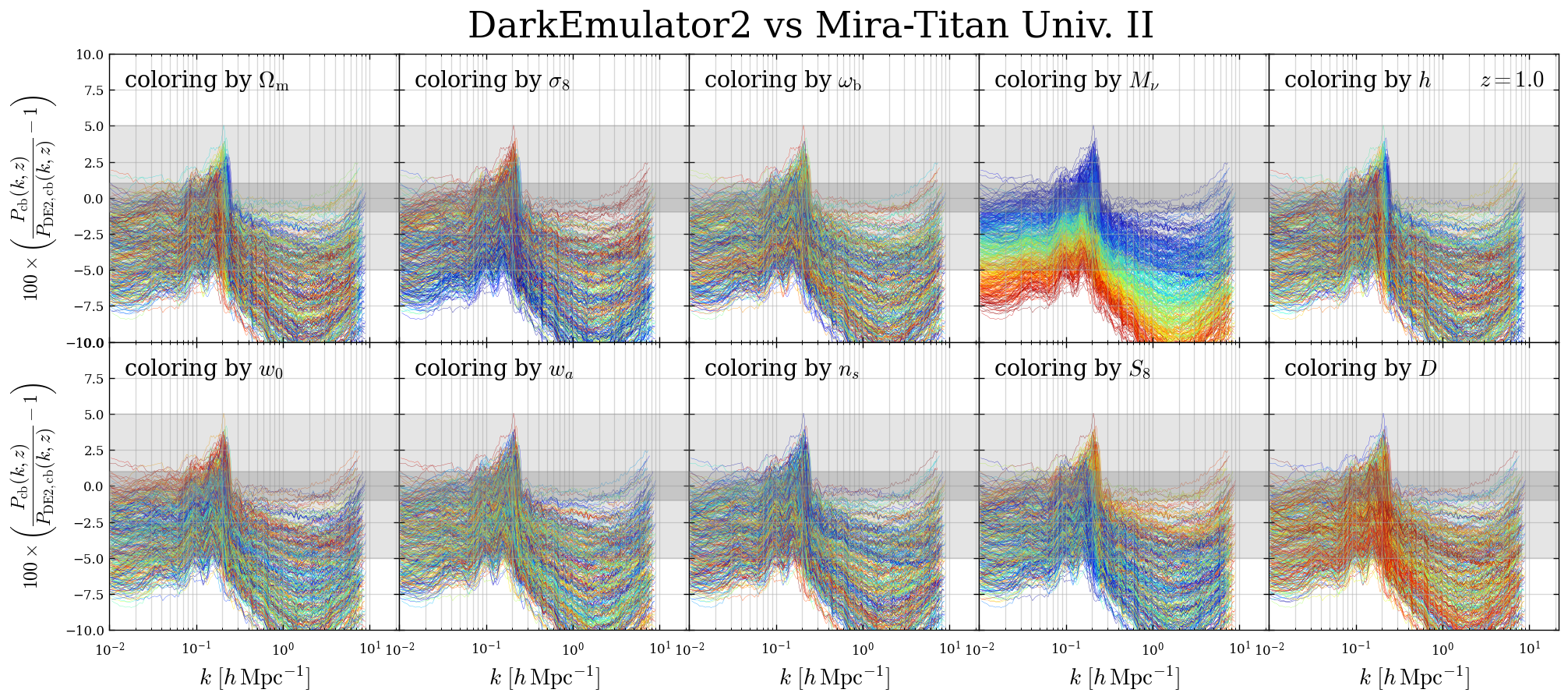

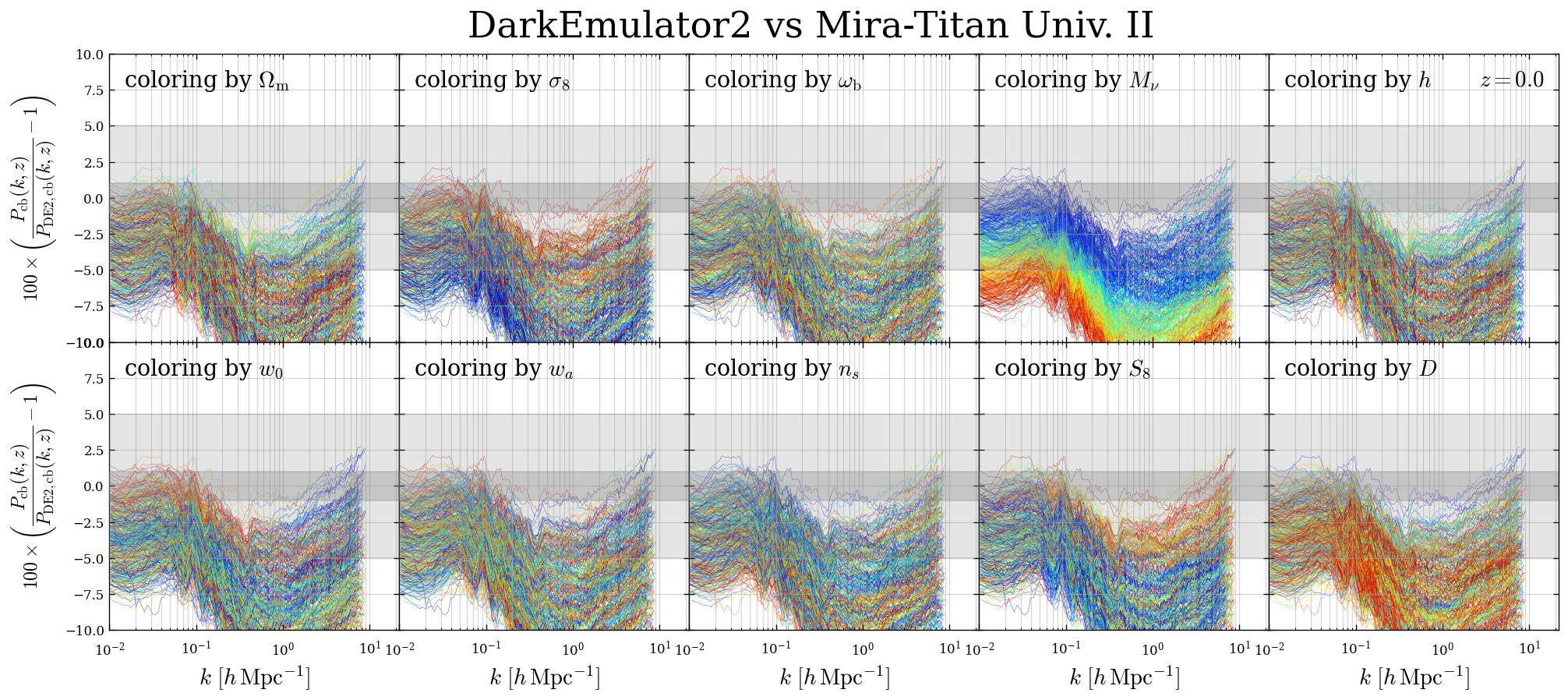

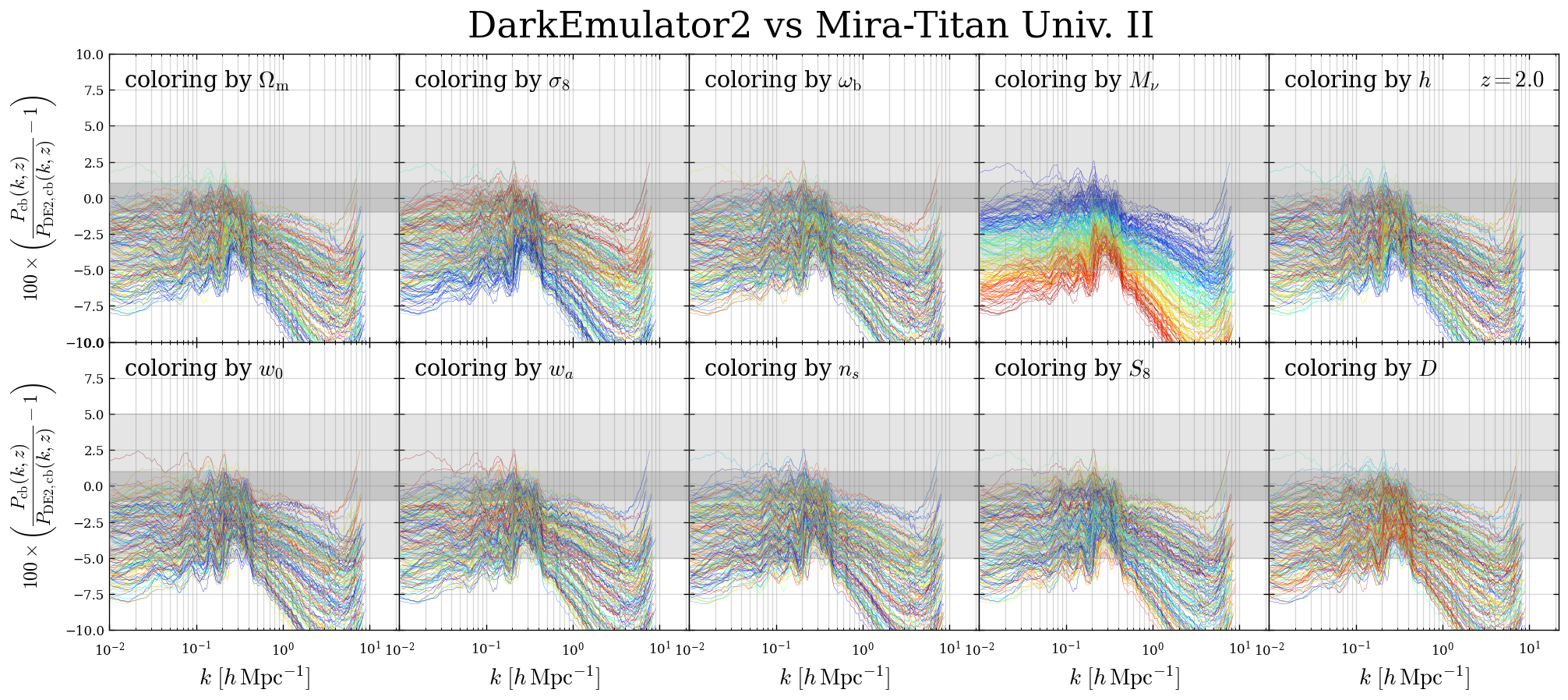

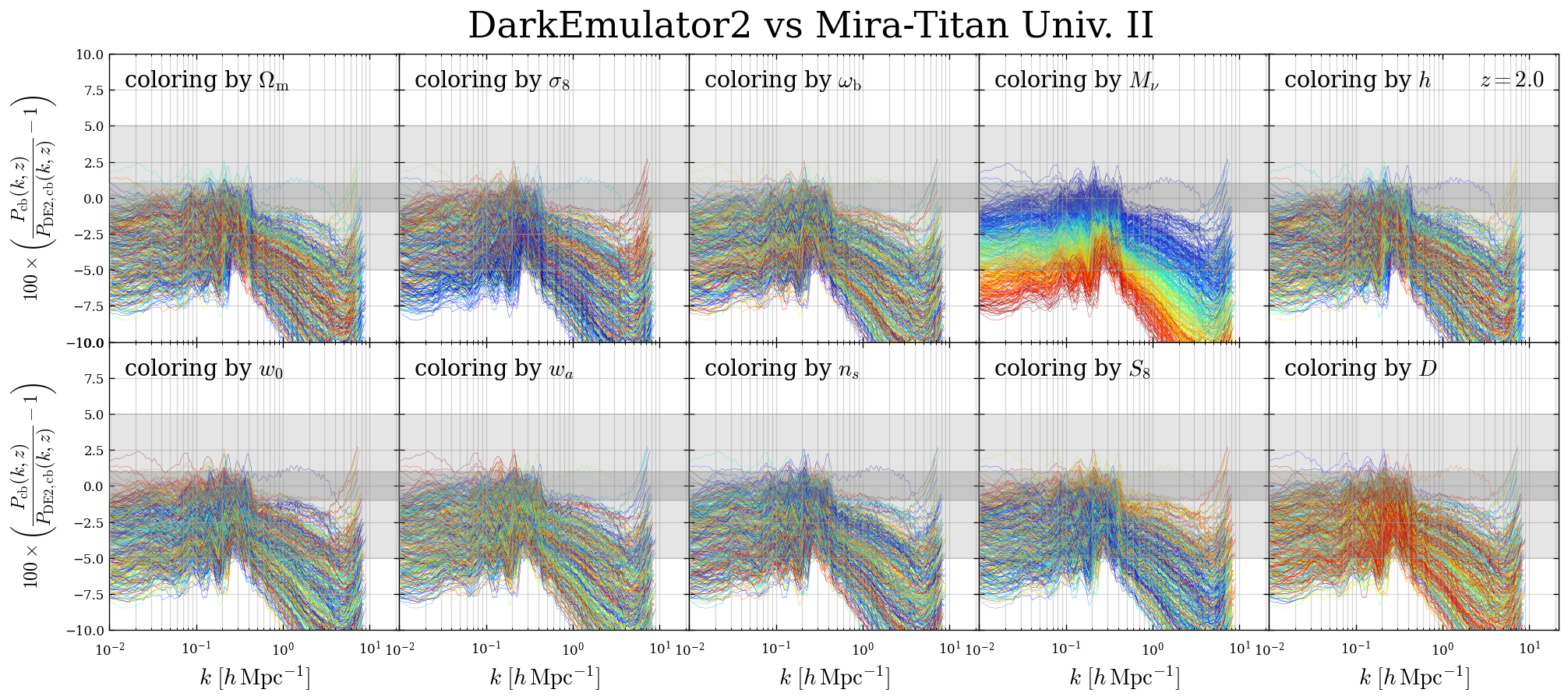

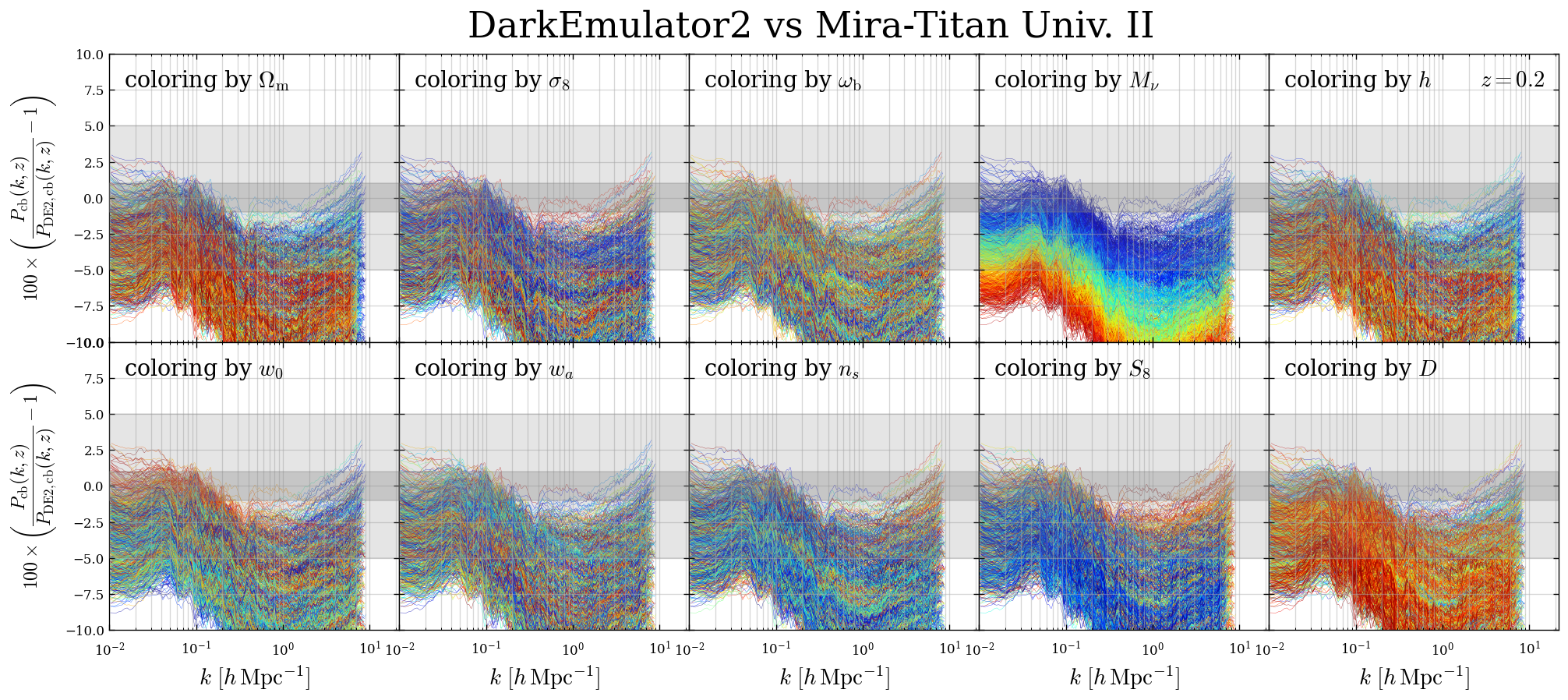

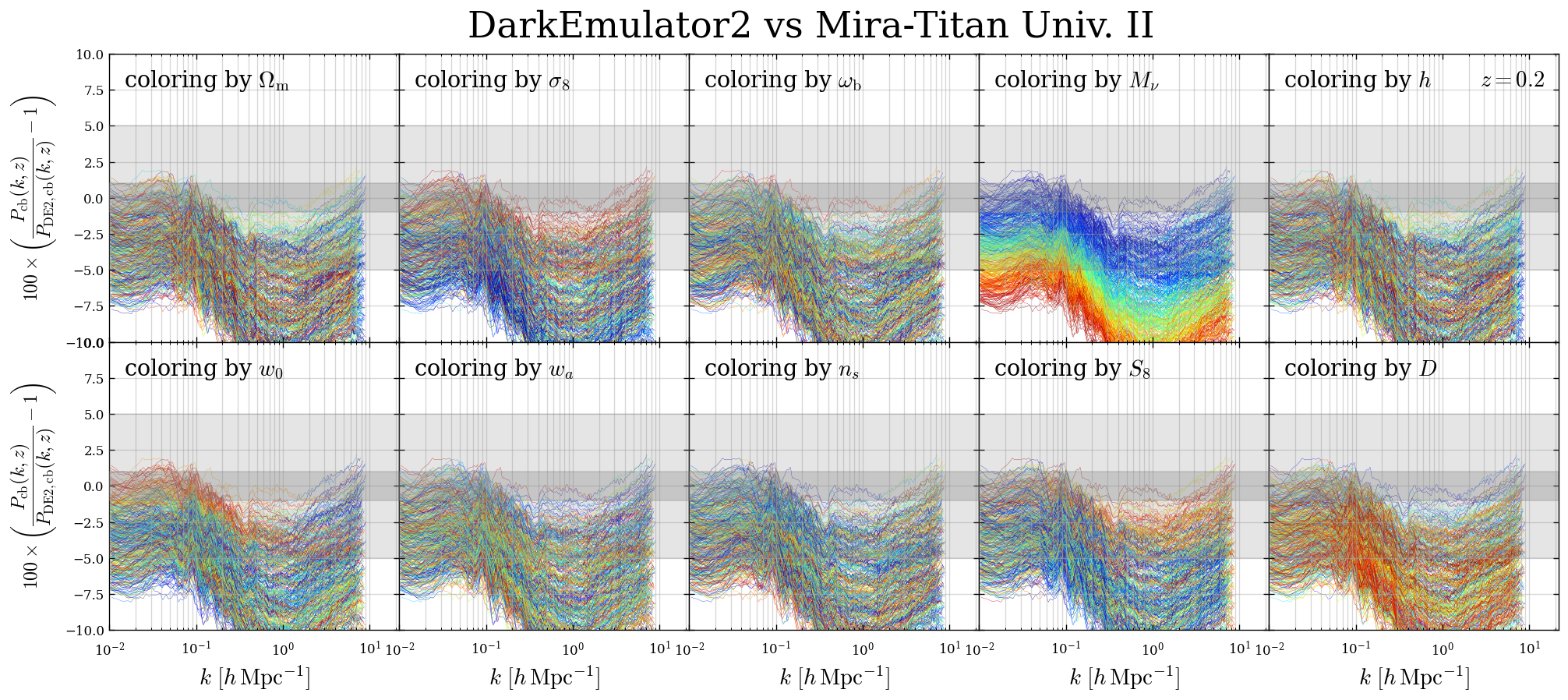

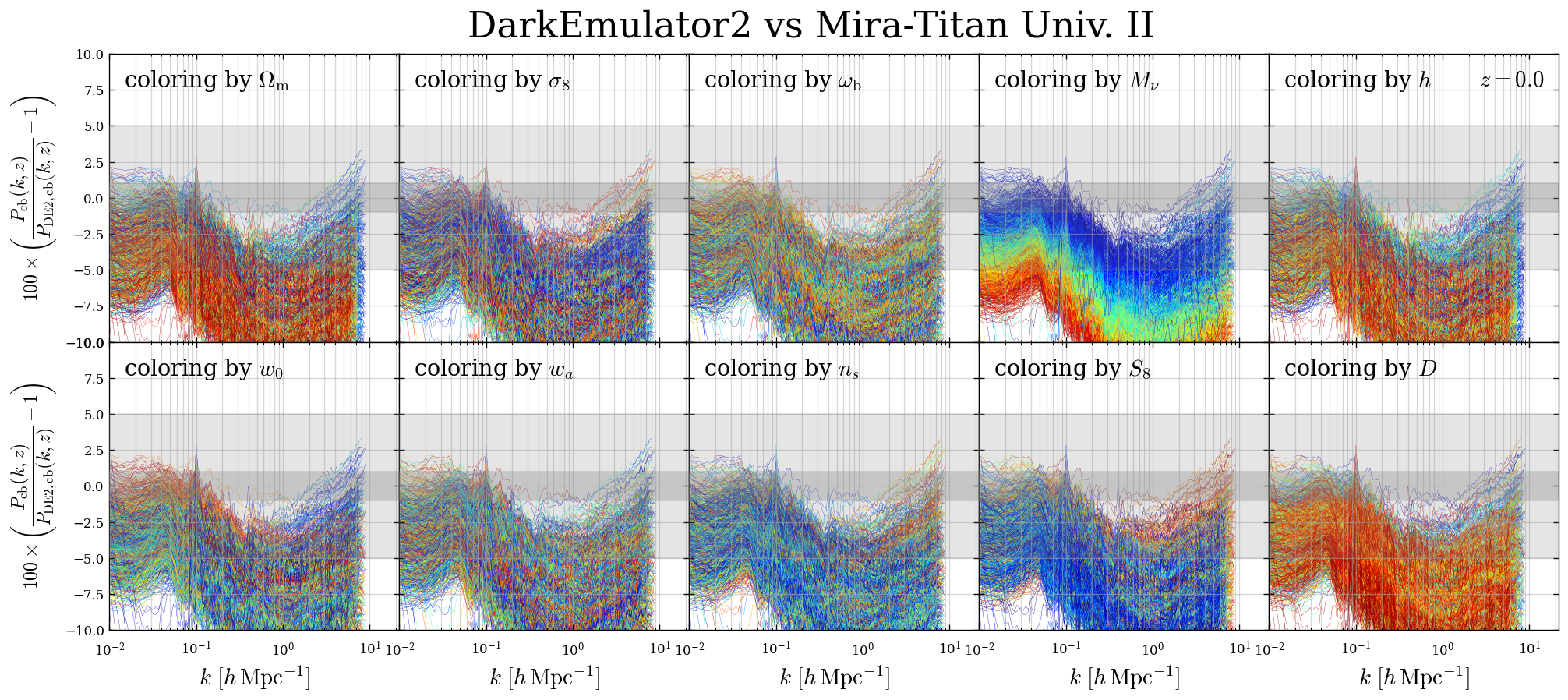

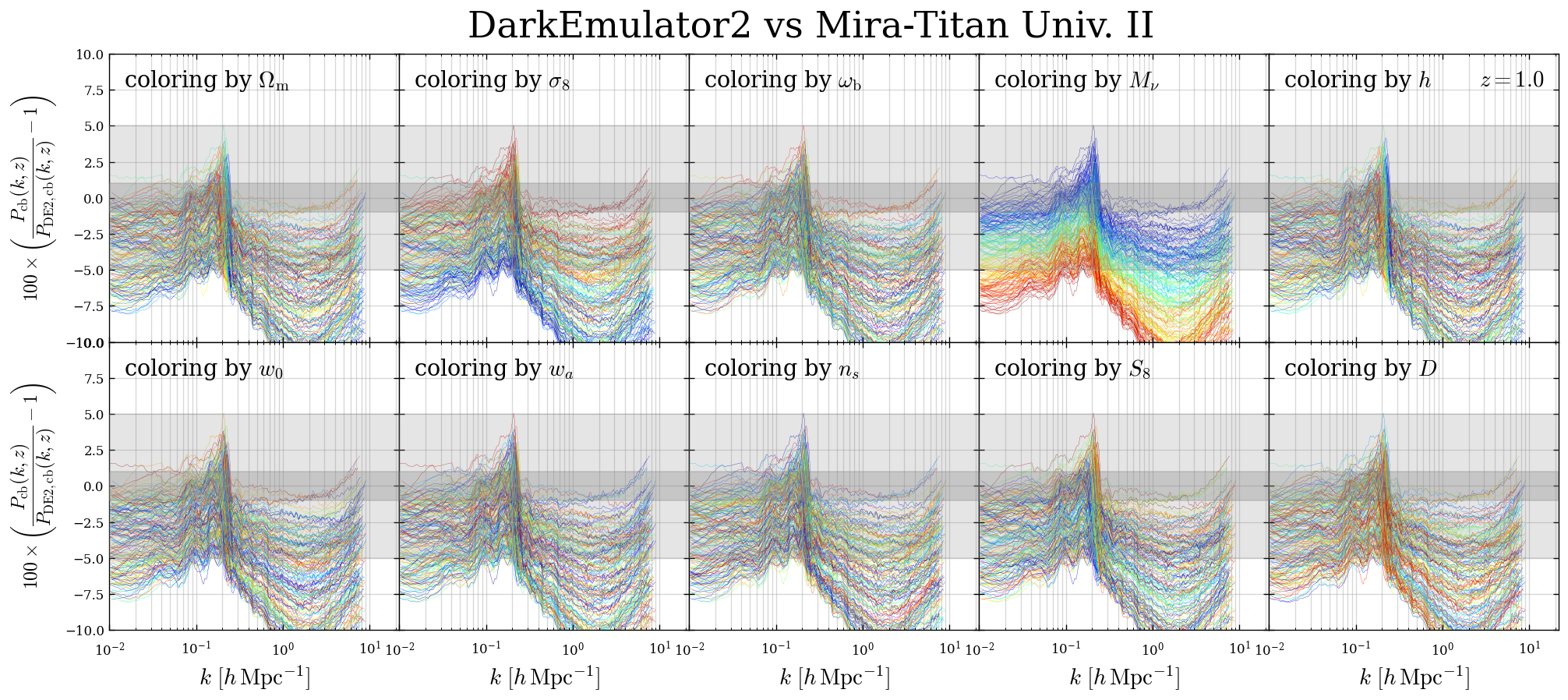

Comparison with DarkEmulator2

• The relation used by MTU between \(P_\mathrm{cb}\) and \(P_\mathrm{tot}\) is

P_\mathrm{tot} = (P_\mathrm{cb}^2 + P_\mathrm{\nu}^2)^{1/2} .

• Therefore, the comparison with the DE2 cb component should be interpreted only as a diagnostic, because the component definitions appear to differ.

P_\mathrm{tot}^2 = P_\mathrm{cb}^2 + 2 P_\mathrm{cb} P_\mathrm{\nu} + P_\mathrm{\nu}^2

compact middle full

z = 0.0 z = 0.2 z = 0.5 z = 1.0 z = 2.0

z = 0.0 z = 0.2 z = 0.5 z = 1.0 z = 2.0

z = 0.0 z = 0.2 z = 0.5 z = 1.0 z = 2.0

---
